Screw Drum Feeder
Optional: Screw cleaning function Screw length detection Scan code to open cover (control screw supply process) Screw full detection (in case there are too many screws in the hopper) Lack of screw detection (in case lack of screws in the hopper)
Request a Quote

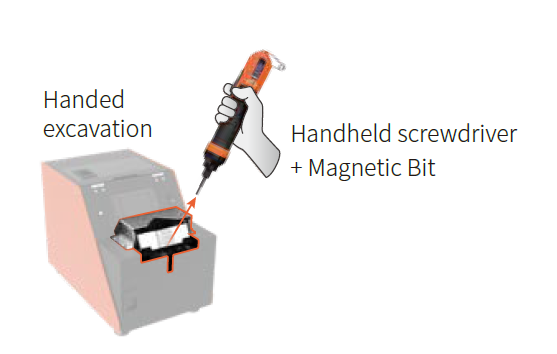

Handed Feeder

handed screw dispenser

Manually remove screws from the head and count them.
The screw needs to be magnetically attractable.
With manual intelligent screwdriver.
Magnetic bit.
Single screw excavation on the machine.

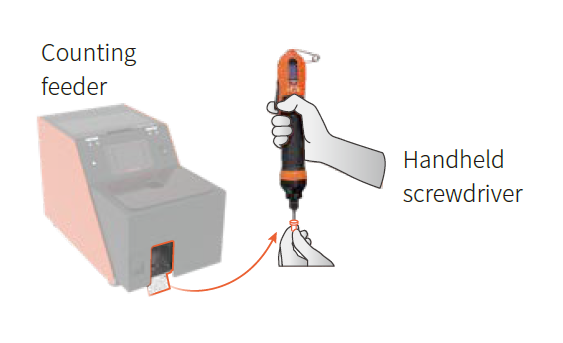

Counting feeder

counting screw feeder

Screw feedinging according to set quantity.
The number of screws is controlled, and the manual station
can effectively prevent the occurrence of screw missing.
With manual intelligent screwdriver.
Tighten the screw by placing it on the bit or in the product hole.

Product Details
產品規(guī)格表
SeriesFDH-SDT
Suitable Model No.

  • FDH-SDT-450mL-H1

  • FDH-SDT-900mL-H1

  • FDH-SDT-450mL-CT

  • FDH-SDT-900mL-CT

Dimension(L*W*H)mm270×154×234 (H1-450mL)
309×190×235 (H1-900mL)
337×154×234 (CT-450mL)
355×190×255 (CT-900mL)
Weight7kg (450mL) | 9.4kg (900mL)
Capacity450mL, 900mL
VoltageDC24V
Power36W
Air Connection SizeΦ6mm(Air supply is not required for standard model)
Screw sticking rate0.03-0.05%(Standard Screw); 0.05-0.08%(Screws with washer)
Feed RateMax. 50pcs/min
